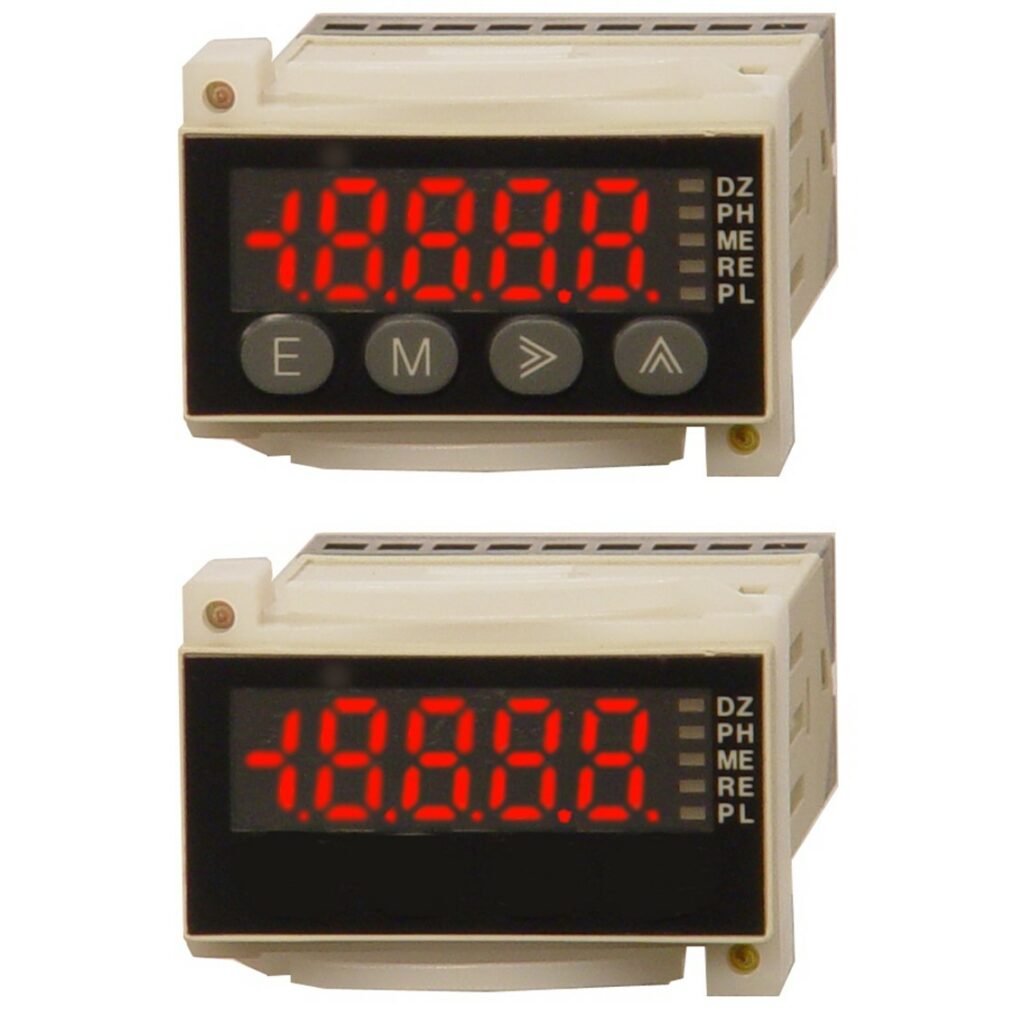

A8□□5
AC ammeter(True RMS)
1/32 DIN AC ammeter
Delivery: 1 week
Features
4 1/2-digit disply with compact size
It is possible to change measurement range by input range selection
Download
Date Sheets
Manuals
Dimensions
Specifications
| Input | AC current(True RMS) |
|---|---|
| Output | ※Specification depends on model codes. ・BCD output×1 TTL Open collector･･･DC30V 10mA |
| Power | DC5V DC12~24V |
| Accuracy | ±0.5%rdg+20digit |
| Dielectric strength | DC500V |
| Weight | Approx.70g |
| Dimensions(HWD) | 24×48×85.5mm |
| Operating temperature/humidity | 0~+50℃ 35~85%RH |
| Panel size(HW) | 24×48mm |
| Display digit | 4+1/2-digit |
