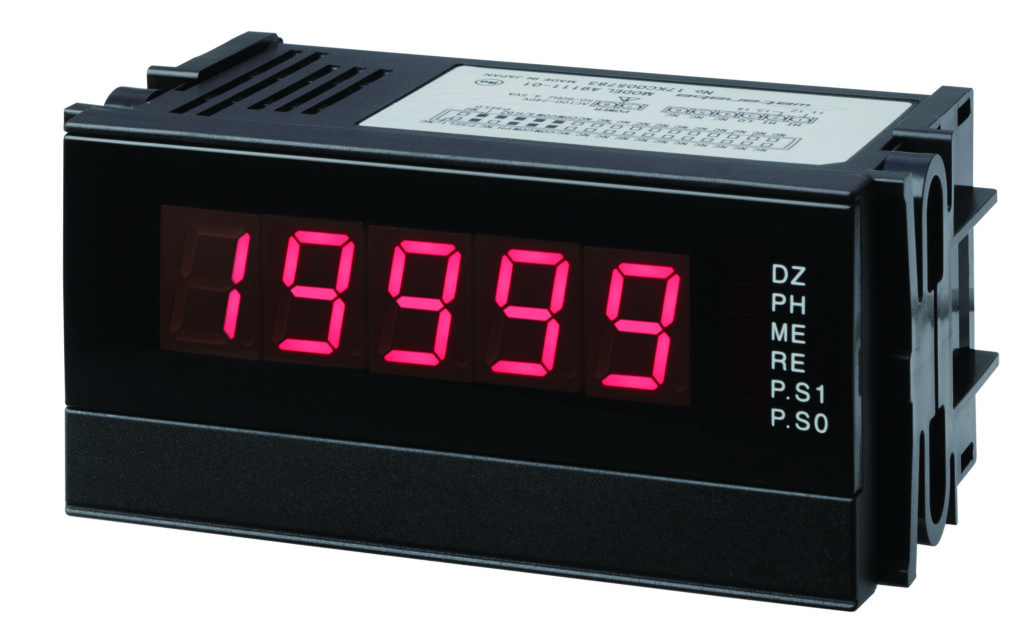

A9□1B
Process meter
1/8 DIN digital panel meter for process signal
Delivery: 1 week
Features
It is possible to change measurement range by input range selection
Scaling setting can be set at any value
Download
Date Sheets
Manuals
Dimensions
Specifications
| Input | Process signal |
|---|---|
| Output | ※Specification depends on model codes. BCD output×1 TTL Open collector･･･DC30V 10mA |
| Power | AC100~240V DC5V DC12~24V |
| Accuracy | ±0.1~0.2%rdg+3digit |
| Dielectric strength | AC power supply:AC1500V DC power supply:DC500V |
| Weight | AC power supply:Approx.160g DC power supply:Approx.150g |
| Dimensions(HWD) | 48×96×75mm |
| Operating temperature/humidity | 0~+50℃ 35~85%RH |
| Panel size(HW) | 48×96mm |
| Display digit | 4+1/2-digit |
