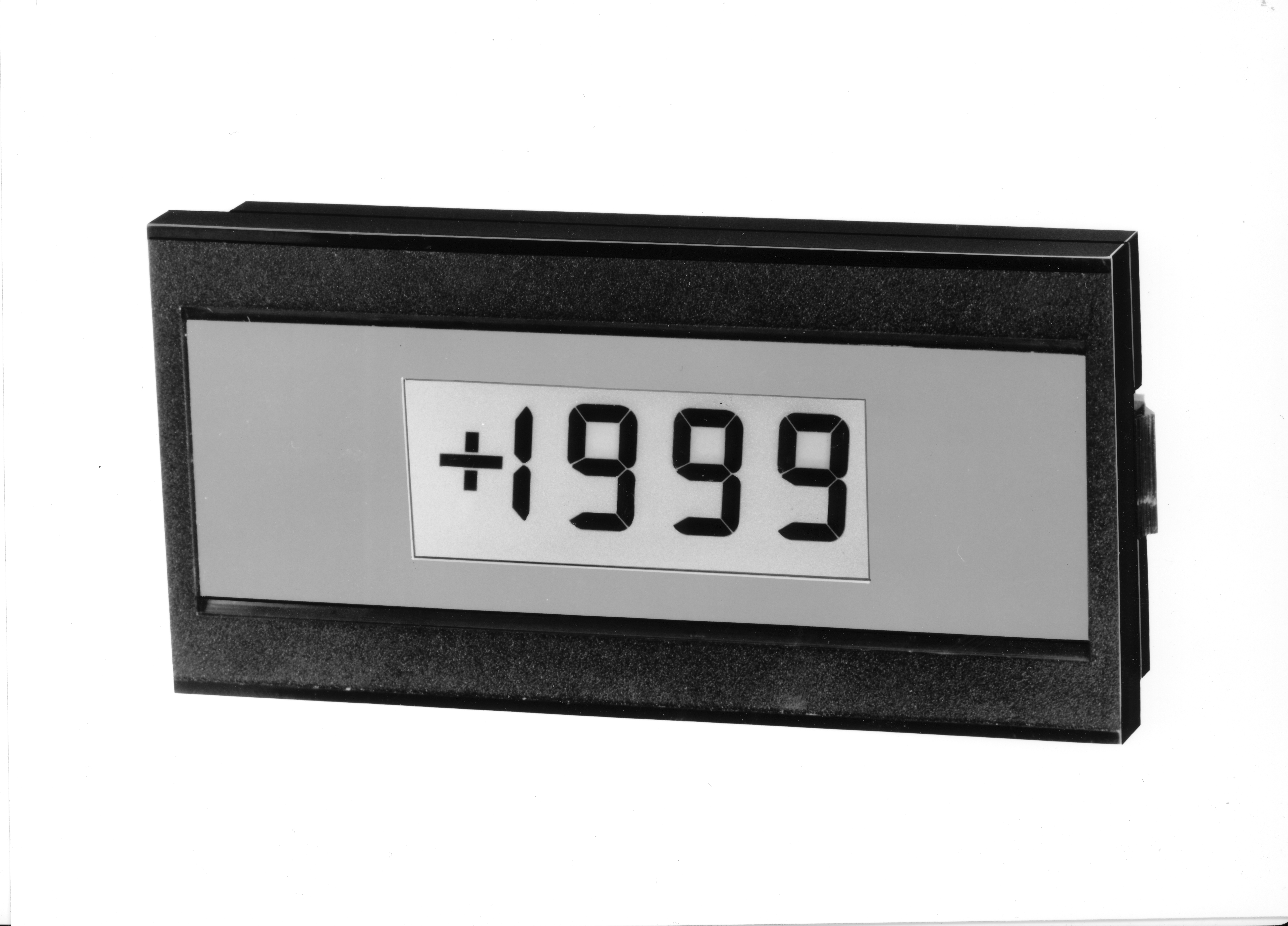

AL-501A
2-wire process meter(48×96mm,LCD display)
1/8 DIN 2-wire DC digital panel meter
Delivery: 1 week
Features
Loop powered by 4-20mA signal (No power supply)
Using LCD
Download
Date Sheets
Manuals
Dimensions
Specifications
| Input | DC4〜20mA |
|---|---|
| Output | Non |
| Power | Operating from an input current (4-20mA) |
| Accuracy | ±0.1rdg+1digit |
| Weight | Approx.55g |
| Standards & Approvals | EN61326-1 EN IEC 63000 |
| Dimensions(HWD) | 48×96×22mm |
| Operating temperature/humidity | 0~+50℃ 35~85%RH |
| Panel size(HW) | 48×96mm |
| Display digit | 3+1/2-digit |
