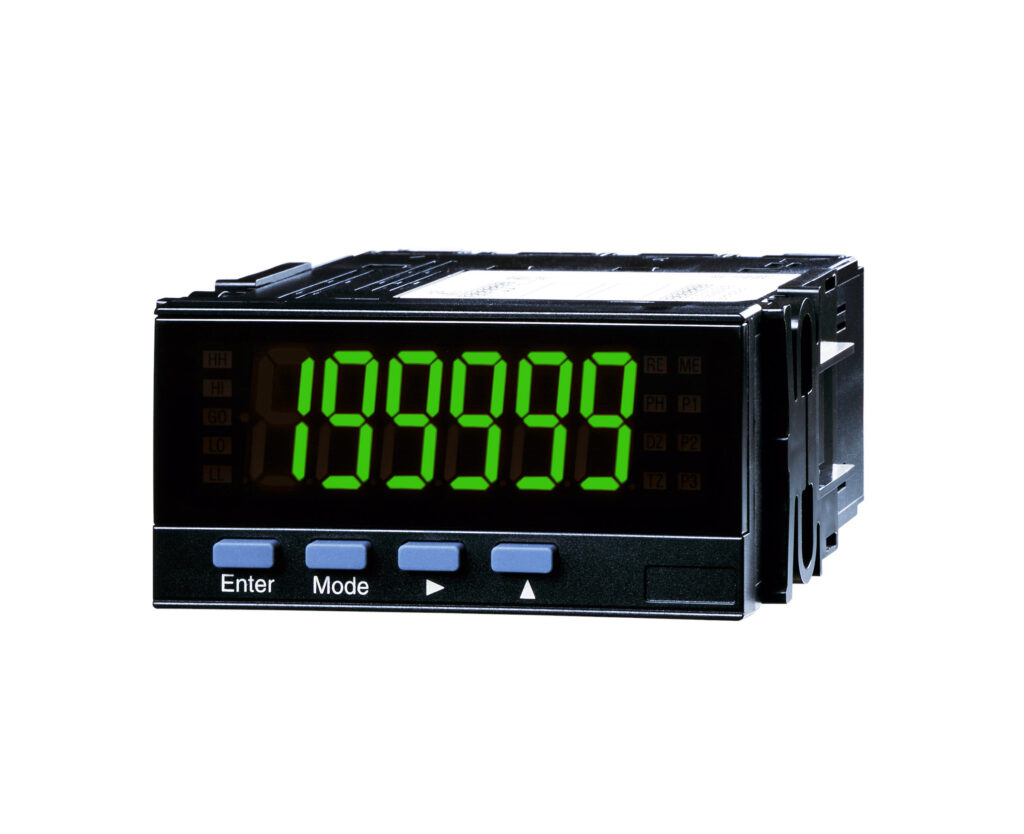

AM-756
DC voltmeter/ammeter(48×96mm,5+1/2-digit display)
1/8 DIN DC meter
●AM-756-21,AM-756-22 Production discontinued : 31 July 2022
Delivery: Inquiry
Features
High resolution by 5 1/2-digit(199999)LED display
High-speed sampling rate (50 times per second)
It is possible to change measurement range by input range selection
Download
Date Sheets
Manuals
Dimensions
Specifications
| Input | DC voltage/DC current |
|---|---|
| Output | ※Specification depends on model codes. Comparative output×5(HH/HI/GO/LO/LL) ・Relay output･･･AC250V 1A/DC30V 1A ・Photo coupler･･･DC30V 20mA Analog output×1 ・DC voltage/DC current BCD output×1 ・TTL ・Open collector･･･DC30V 10mA |
| Power | AC100~240V DC12~48V |
| Accuracy | DC voltage:±0.03%rdg+15digit DC current:±0.04%rdg+10digit |
| Dielectric strength | AC1500V |
| Weight | Approx.300g |
| Dimensions(HWD) | 48×96×97.5mm |
| Operating temperature/humidity | 0～+50℃ 35～85%RH |
| Panel size(HW) | 48×96mm |
| Display digit | 5+1/2-digit |
