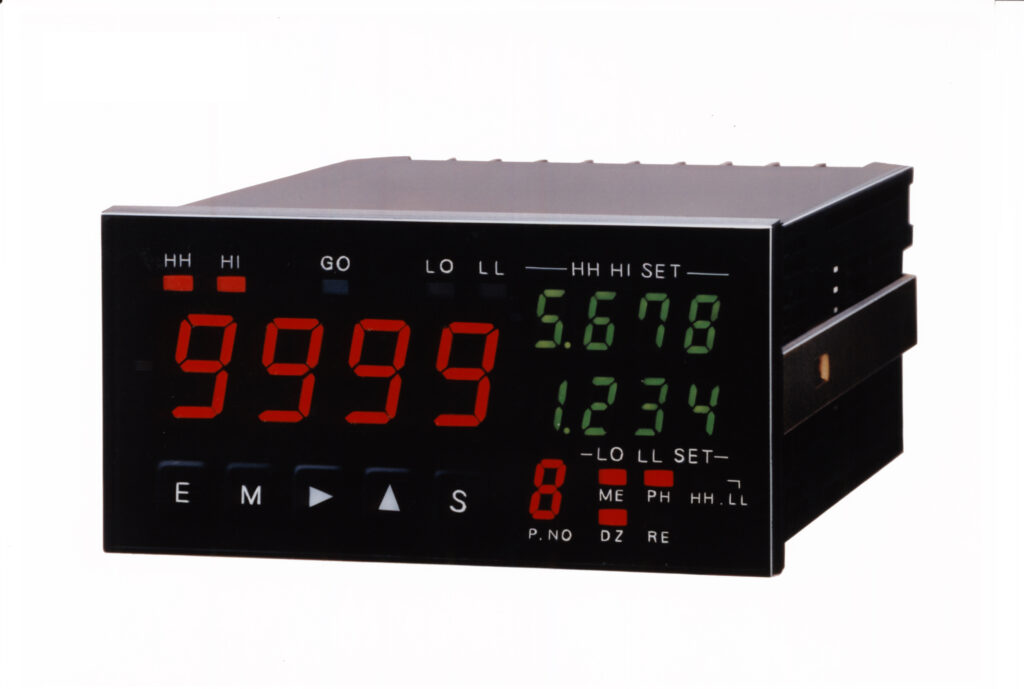

AMH-148
DC voltmeter/ammeter(48×96mm,Sampling rate of 1000 times per second)
1/8 DIN DC meter
Delivery: Inquiry
Features
High-speed sampling rate (1000 times per second)
It is possible to change measurement range by input range selection
Download
Date Sheets
Dimensions
Specifications
| Input | DC voltage/DC current |
|---|---|
| Output | ※Specification depends on model codes. Comparative output×5(HH/HI/GO/LO/LL) ・Relay output･･･AC120V 0.5A/DC28V 1A ・Photo coupler･･･DC30V 20mA |
| Power | AC100~120V AC200~240V |
| Accuracy | DC voltage:±0.1%fs+10digit DC current:±0.2%rdg+1digit |
| Dielectric strength | AC1500V |
| Weight | Approx.450g |
| Dimensions(HWD) | 48×96×148mm |
| Operating temperature/humidity | 0~+50℃ 35~85%RH |
| Panel size(HW) | 48×96mm |
| Display digit | 4-digit |
