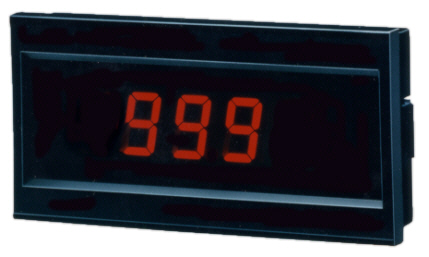

AP-560
2-wire AC voltage meter(48×96mm,Ultra-Shallow)
1/8 DIN AC voltmeter
Delivery: Inquiry
Features
This meter drives by input signal, so the power supply is not required
18.5mm short depth
Download
Date Sheets
Manuals
Dimensions
Specifications
| Input | AC voltage |
|---|---|
| Output | Non |
| Power | operates by input current |
| Accuracy | ±3digit |
| Dielectric strength | DC1500V |
| Weight | Approx.55g |
| Dimensions(HWD) | 48×96×22mm |
| Operating temperature/humidity | 0~+50℃ 35~85%RH |
| Panel size(HW) | 48×96mm |
| Display digit | 3-digit |
