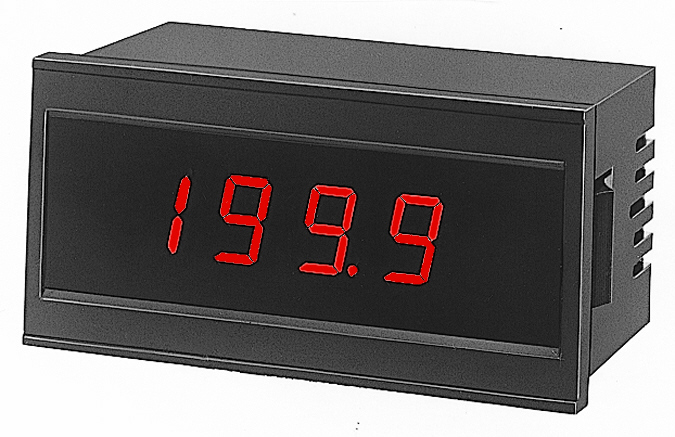

AS-101
Process signal meter
1/8 DIN digital panel meter for process signal
Delivery: 1 week
Features
Low cost design by display function only
Download
Date Sheets
Manuals
Dimensions
Specifications
| Input | Process signal |
|---|---|
| Output | Non |
| Power | AC100~120V AC200~240V DC24V |
| Accuracy | DC voltage:±0.1%fs+2digit DC current:±0.2%rdg+2digit |
| Dielectric strength | AC power supply:AC2100V DC power supply:DC500V |
| Weight | AC power supply:Approx.175g DC power supply:Approx.100g |
| Standards & Approvals | EN61326-1 EN61010-1 EN IEC 63000 |
| Dimensions(HWD) | 48×96×71mm |
| Operating temperature/humidity | 0~+50℃ 35~85%RH |
| Panel size(HW) | 48×96mm |
| Display digit | 3+1/2-digit |
Recommended Replacement Model
