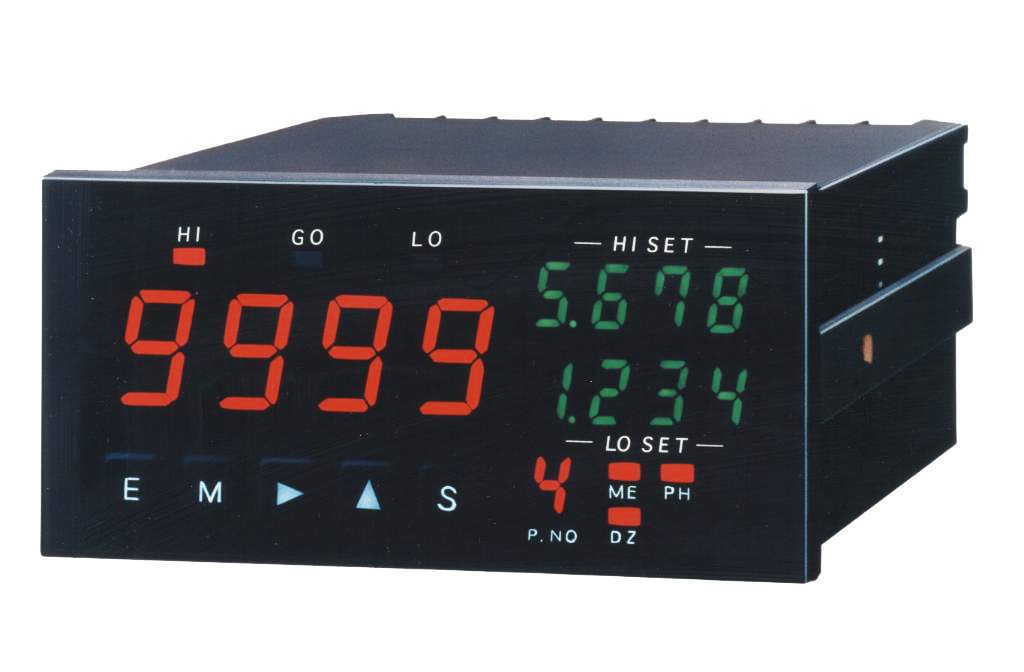

ASG-158
Load cell meter(48×96mm,Sampling rate of 2000 times per second)
1/8 DIN load cell meter
Delivery: Inquiry
Features
High-speed sampling rate (2000 times per second)
With Original function 'SPC' (Section point compare) which is useful in the process of pressure increasing (caulking).
Download
Date Sheets
Manuals
Dimensions
Specifications
| Input | Load cell |
|---|---|
| Output | ※Specification depends on model codes. ・Analog output×1 DC voltage/DC current ・BCD output×1 TTL Open collector･･･DC30V 10mA ・Communication output×1 RS-232C |
| Network | RS-232C |
| Power | AC100V AC200V |
| Accuracy | ±0.15%fs+1digit |
| Dielectric strength | AC100V power supply:AC1500V AC200V power supply:AC2100V |
| Weight | Approx.550g |
| Dimensions(HWD) | 48×96×144mm |
| Operating temperature/humidity | 0~+50℃ 35~85%RH |
| Panel size(HW) | 48×96mm |
| Display digit | 4-digit |

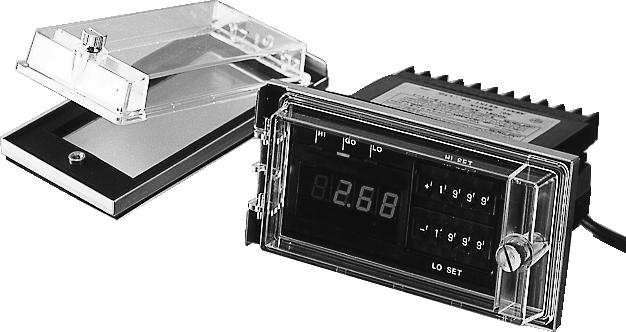

Available Accessories
