CTL-10

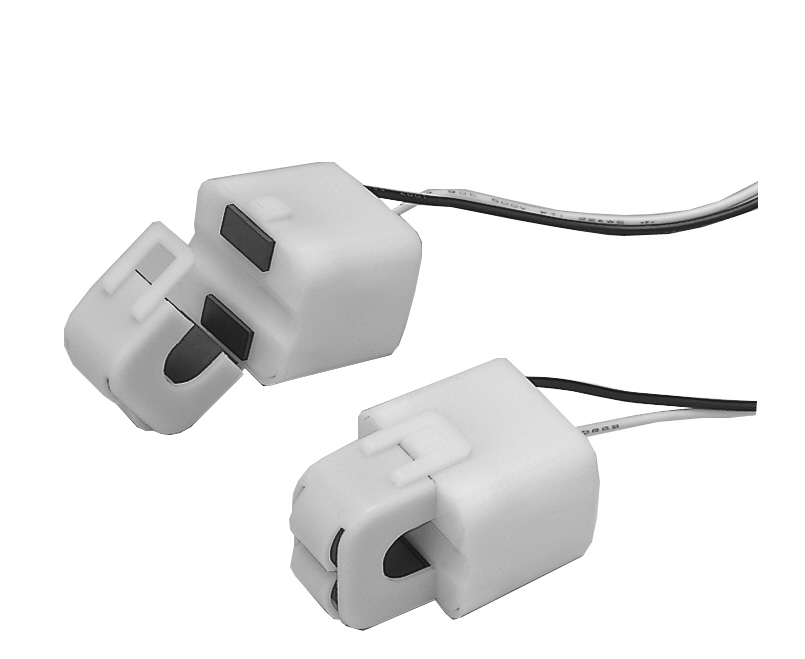

Compact Split-core CT
This is a compact split-core CT that can be installed without disconnecting the wiring.
Significantly reduces labor for both new and existing installations.
Delivery: Inquiry
Features
Split-core type suitable for live installation
One-touch installation
Built-in protection circuit for open secondary side
Download
Date Sheets
Specifications
| Rated Primary Current | AC5A / AC30A / AC50A (depending on connected device) |
|---|---|
| Ratio Error | Within ±1.5% at 100% rating, ±2% at 5% rating |
| Dielectric strength | AC1000V for 1 min (core to output connector) |
| Weight | Approx. 45g (main unit) |
| Dimensions | 38.5×26×25mm |
| Operating Temp/Humidity | -20 to 55°C, 80%RH or less (non-condensing) |
