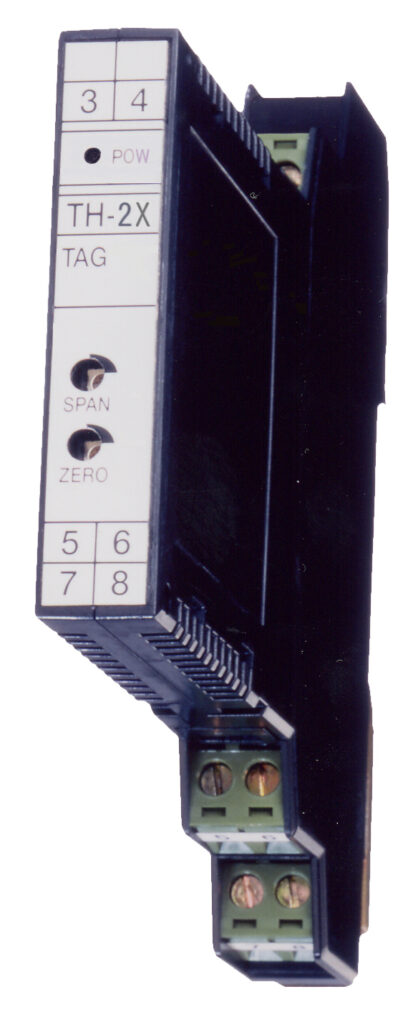

TH-2X/5X
isolator
Isolator which outputs DC signal proportional to the input signals
Delivery: Inquiry
Features
12.5mm width slim case converter has an effect on space-saving at installation by close mounting
CE approval adapts only for DC power supply model
Download
Date Sheets
Manuals
Dimensions
Specifications
| Input | DC voltage/DC current |
|---|---|
| Output | DC voltage/DC current |
| Power | AC100〜240V DC24V |
| Accuracy | ±0.1%fs |
| Response time(0→90%) | 1ms or 50ms |
| Zero-Span adjustment | ±5%fs |
| Dielectric strength | AC1500V |
| Weight | Approx.80g |
| Standards & Approvals | ※Only DC Power EN61326-1 EN IEC 63000 |
| Dimensions(HWD) | 103×12.5×115mm |
| Operating temperature/humidity | -5~+50℃ Lower limit 90%RH |
