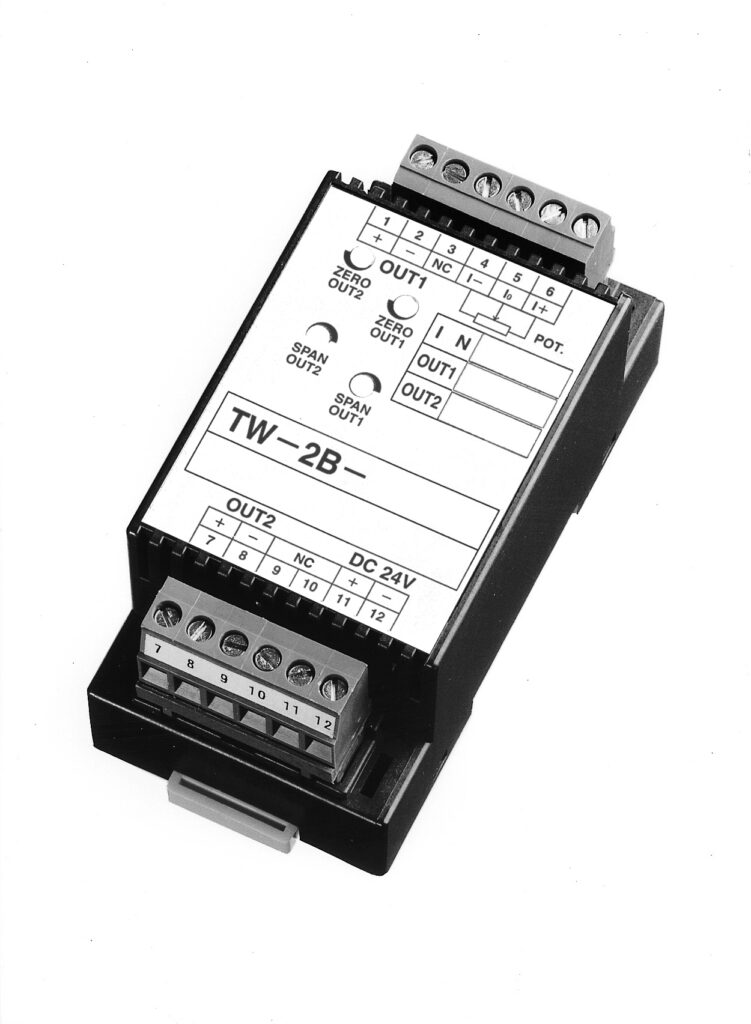

TW-2B
2-output potentiometer converter
Converter which outputs DC signal proportional to the 3-wire potentiometer signals (2-output)
Delivery: 1 week
Features
Space-saving and weight-saving by unifying converter and terminal block
Download
Date Sheets
Dimensions
Specifications
| Input | Potentiometer |
|---|---|
| Output | DC voltage/DC current(2-output) |
| Power | DC24V |
| Accuracy | ±0.25%fs |
| Response time(0→90%) | 50ms |
| Dielectric strength | AC2000V |
| Weight | Approx.130g |
| Dimensions(HWD) | 98×48×41mm |
| Operating temperature/humidity | -5~+50℃ Lower limit 90%RH |
