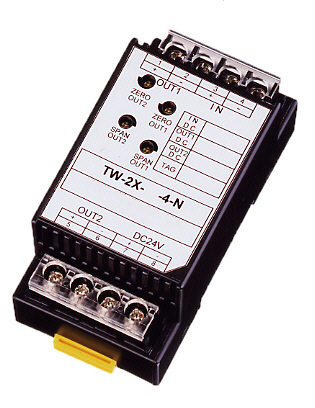

TW-2X
2-output isolator(DC power supply)
Isolator which outputs DC signal proportional to the input signals (2-output)
Features
Space-saving and weight-saving by unifying converter and terminal block
Download
Date Sheets
Manuals
Dimensions
Specifications
| Input | DC voltage/DC current |
|---|---|
| Output | DC voltage/DC current(2-output) |
| Power | DC24V |
| Accuracy | ±0.1%fs |
| Response time(0→90%) | 50ms |
| Dielectric strength | AC2000V |
| Weight | Approx.130g |
| Dimensions(HWD) | 98×48×41mm |
| Operating temperature/humidity | -5~+50℃ Lower limit 90%RH |
