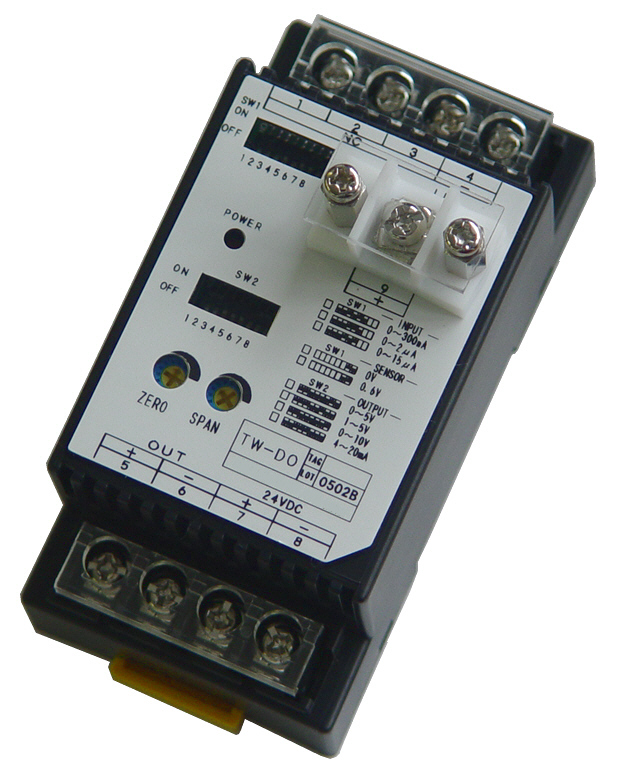

TW-DO
Universal dissolved oxygen converter
Converter which outputs DC signal proportional to the sensor signal
Delivery: Inquiry
Features
Space-saving and weight-saving by unifying converter and terminal block It is possible to set input/output signal and built in exicitation (sensor power supply) settings by DIP switches
Download
Dimensions
Specifications
| Input | DC current(Polarograph type/Galvanic type) |
|---|---|
| Output | DC voltage/DC current |
| Power | DC24V |
| Accuracy | ±0.6%fs |
| Response time(0→90%) | 200ms |
| Dielectric strength | AC2000V |
| Weight | Approx.140g |
| Dimensions(HWD) | 98×48×61mm |
| Operating temperature/humidity | -5~+50℃ Lower limit 90%RH |
