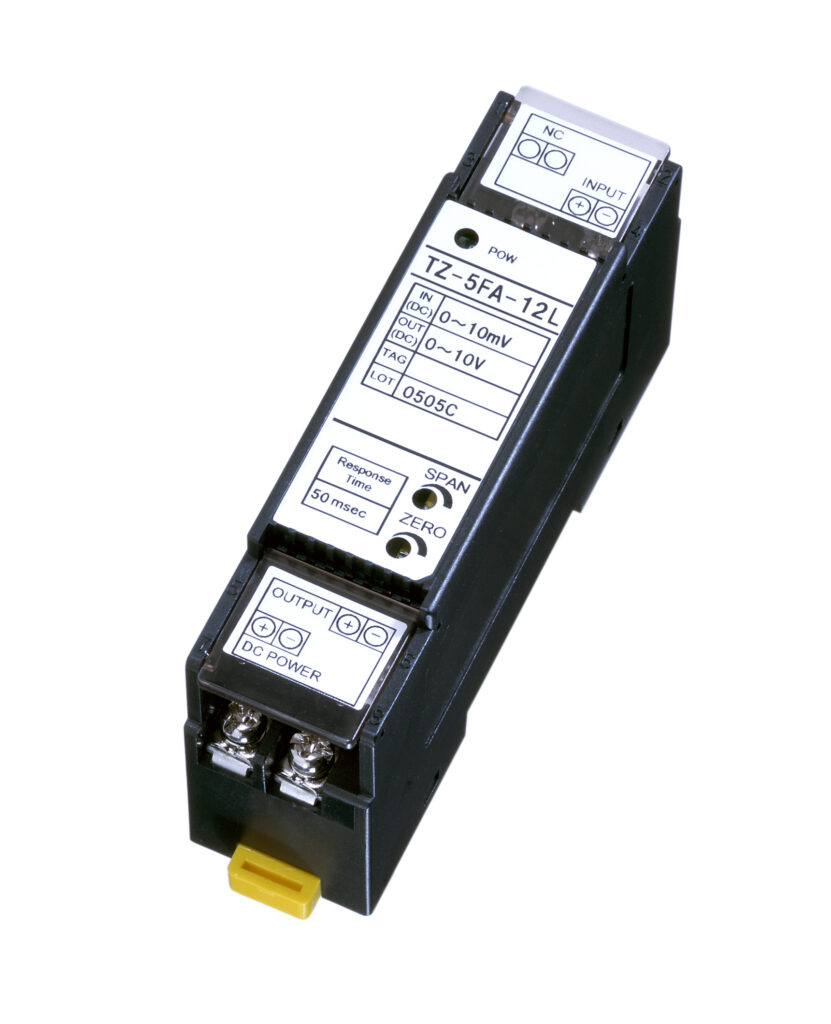

TZ-1FA/5FA
Extremely small DC signal isolator
Isolator which is compatible with mV/mA signal input
Delivery: Inquiry
Features
Space-saving and weight-saving by unifying converter and terminal block
Download
Date Sheets
Manuals
Dimensions
Specifications
| Input | DC voltage/DC current |
|---|---|
| Output | DC voltage/DC current |
| Power | AC100〜240V DC24V |
| Accuracy | ±0.1%fs |
| Response time(0→90%) | 3ms or 50ms |
| Zero-Span adjustment | ±5%fs |
| Dielectric strength | AC2000V(AC power supply) AC1500V(DC power supply) |
| Weight | Approx.80g |
| Dimensions(HWD) | 98×25×41mm |
| Operating temperature/humidity | -5~+50℃ Lower limit 90%RH |
