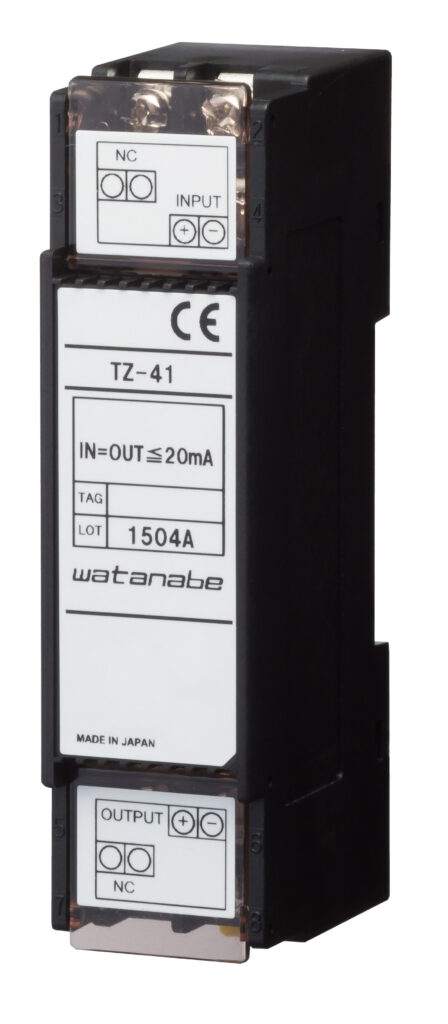

TZ-41
Loop powered isolator
Loop powered isolator which drives by input signal
Delivery: 1 week
Features
Space-saving and weight-saving by unifying converter and terminal block
CE approved
Download
Date Sheets
Manuals
Dimensions
Specifications
| Input | DC0〜20mA |
|---|---|
| Output | DC0〜20mA |
| Power | なし |
| Accuracy | ±0.1%fs |
| Response time(0→90%) | 50ms |
| Weight | Approx.80g |
| Standards & Approvals | EN61326-1 EMIclassA EN IEC 63000 |
| Dimensions(HWD) | 98×25×41mm |
| Operating temperature/humidity | -5~+50℃ Lower limit 90%RH |
