WSC-52FD/65GD

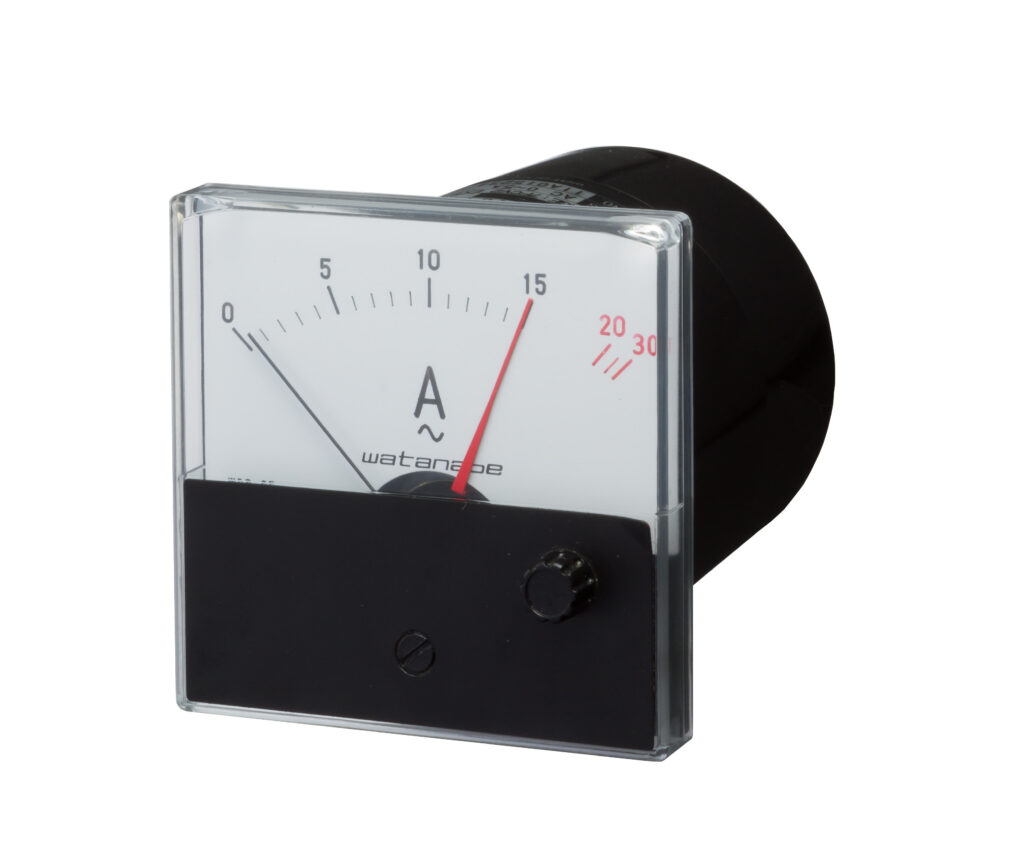

Acrylic cover-type non-contact meter relay(Direct connected type)
LED method non-contact meter relay
Delivery: Inquiry
Features
Reduces mounting man-hour by integrated relay box
Download
Date Sheets
Dimensions
Specifications
| Input | DC voltage/DC current/AC voltage/AC current |
|---|---|
| Output | Alarm output×1~2 Relay output･･･AC250V 0.5A/DC30V 2A |
| Power | AC90~120V AC180~240V DC20~26V DC10~14V |
| Accuracy | ±2.5%(WSC-52/65/70) ±1.5%(WSC-85/75) |
| Response time(0→90%) | Relay operating time : 0.1 seconds |
| Dielectric strength | AC2000V |
| Weight | Approx.260~400g |
| Dimensions(HWD) | Depends on model codes. ※Please refer to the data sheet |
| Operating temperature/humidity | -10~+60℃ |
| Panel size(HW) | Depends on model codes. ※Please refer to the data sheet |
