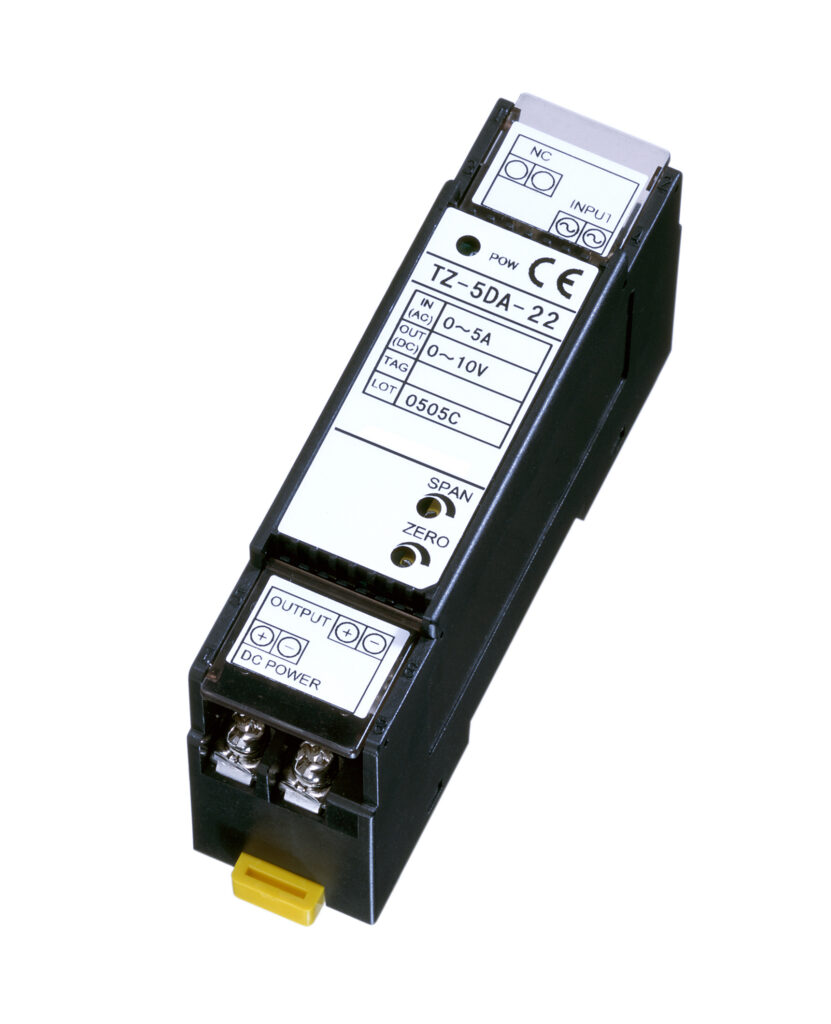

TZ-1DA/5DA
AC current converter（ture RMS）
Converter which outputs DC signal proportional to the AC current signals
Delivery: Inquiry
Features
Space-saving and weight-saving by unifying converter and terminal block
CE approval adapts only for DC power supply model
Download
Date Sheets
Manuals
Dimensions
Specifications
| Input | AC current（True RMS） |
|---|---|
| Output | DC voltage/DC current |
| Power | AC100〜240V DC24V |
| Permissible tolerance | ±0.2%fs(5～100%fs) ±1.0%fs(0～5%fs) |
| Response time | 700ms |
| Zero-Span adjustmen | ±5%fs |
| Operating temperature/humidity | －5～+50℃ Lower limit 90%RH |
| Dielectric strength | AC2000V(AC power supply) AC1500V(DC power supply) |
| External Dimensions | 98×25×41mm |
| Weight | Approx.80g |
| Standards & Approvals | (DC power supply only) EN61326-1 EN IEC 63000 |
