R01

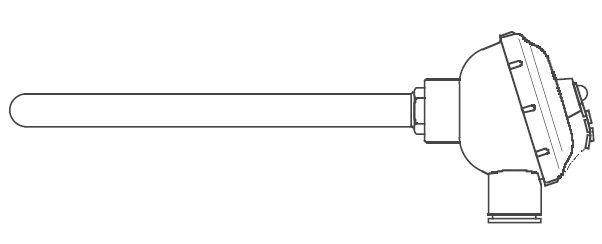

Straight RTD (Resistance Temperature Detectors)with Terminal
R01 is a resistance temperature detector with the simplest shape for a terminal box.
By combining with loose flange (LFL) andcompression fitting (CFG), it can be used for temperature measurement of ducts and tanks as an insertion type with adjustable insertion length.
Delivery: Inquiry
Features
With Connection head and terminal
Straight type with Protection tube
Download
Date Sheets
Specifications
| Element | Pt100Ω resistance element |
|---|---|
| Wiring | 3-wire |
| Tolerance | Class A : ±(0.15 + 0.002 | t | ) Class B : ±(0.3 + 0.005 | t | ) |
| Measuring current | 1mA |
| Number of element | Single / Double |
| Insulation resistance | 100MΩ or more with 125V |
