R07

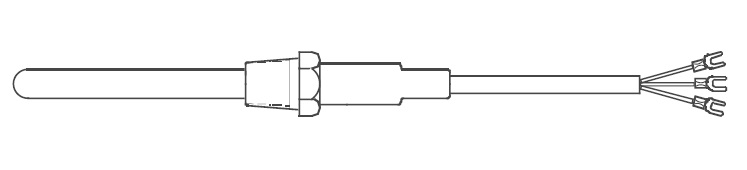

RTD (Resistance Temperature Detectors)with Lead wire and Thread fitting
R07 is a screw type Resistance temperature detector, which can be used for various purposes such as piping, duct, tank etc.
Standard screws are taper pipe thread and parallel pipe thread,but other types of screws are also available.
Delivery: Inquiry
Features
With Lead wire and terminal
Screw type with thread fitting
Download
Date Sheets
Specifications
| Element | Pt100Ω resistance element |
|---|---|
| Wiring | 3-wire |
| Tolerance | Class A : ±(0.15 + 0.002 | t | ) Class B : ±(0.3 + 0.005 | t | ) |
| Measuring current | 1mA |
| Number of element | Single / Double |
| Insulation resistance | 100MΩ or more with 125V |
