RAC
RTD (Resistance Temperature Detectors)Element exchange type with lead wire

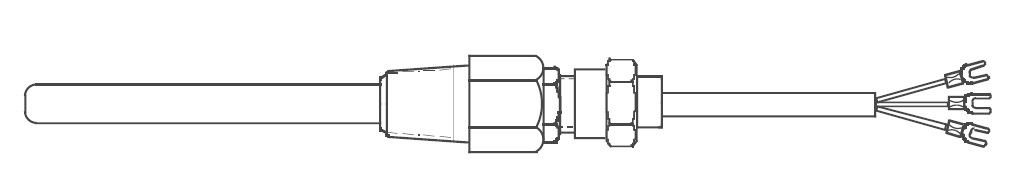

RAC is a screw-in type resistance temperature detector.
Since the element can be replaced without removing the protective tube,it is ideal for measuring the temperature of piping and heat storage tanks.
Delivery: Inquiry
Features
Able to replace element without removing the protection tube
Screw type
Used at temperature measurement of piping and heat storage tanks
Download
Date Sheets
Specifications
| Element | Pt100Ω resistance element |
|---|---|
| Wiring | 3-wire |
| Tolerance | Class A : ±(0.15 + 0.002 | t | ) Class B : ±(0.3 + 0.005 | t | ) |
| Measuring current | 1mA |
| Number of element | Single / Double |
| Insulation resistance | 100MΩ or more with 125V |
