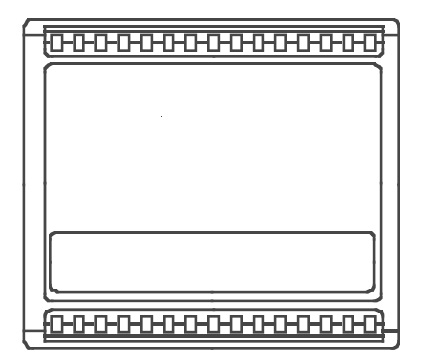

RHM
RTD for Room temperature
RHM is an indoor resistance temperature detector that is mounted on a wall to measure the temperature of a space.
Since it uses flame-retardant ABS resin, it can measure temperatures up to 120 ° C.
In addition, chlorine countermeasures and drip-proof specifications can be produced, so it can be used for indoor pools, bathrooms, dry saunas, etc. in addition to general air conditioning.
Delivery: Inquiry
Features
Special specifications such as drip-proof design and salt damage prevention are also available.
Since it uses flame-retardant ABS resin, it can measure temperatures up to 120 ℃.
Download
Date Sheets
Specifications
| Element | Pt100Ω resistance element |
|---|---|
| Wiring | 3-wire |
| Tolerance | Class A : ±(0.15 + 0.002 | t | ) Class B : ±(0.3 + 0.005 | t | ) |
| Measuring current | 1mA |
| Number of element | Single |
| Insulation resistance | 10MΩ or more with 500V |
