RLS

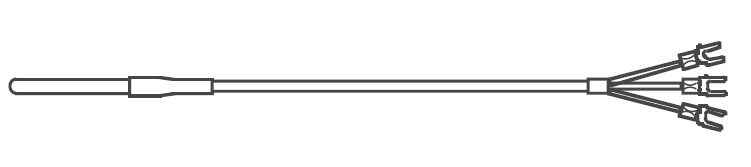

RTD (Resistance Temperature Detectors)Compact RTD for surface temparature measuring
RLS is a compact temperature-measuring resistive element that can be widely used, such as measurement of pipe surface temperature and temperature measurement of piping fluid in
combination with protective pipe.
Since it is a product with excellent cost performance,please contact us separately if the amount used is large.
Delivery: Inquiry
Features
A cost-effective product
Download
Date Sheets
Specifications
| Element | Pt100Ω resistance element |
|---|---|
| Wiring | 3-wire |
| Tolerance | Class B : ±(0.3 + 0.005 | t | ) |
| Measuring current | 1mA |
| Number of element | Single |
| Insulation resistance | 100MΩ or more with 125V |
