RPM
Magnetic type RTD

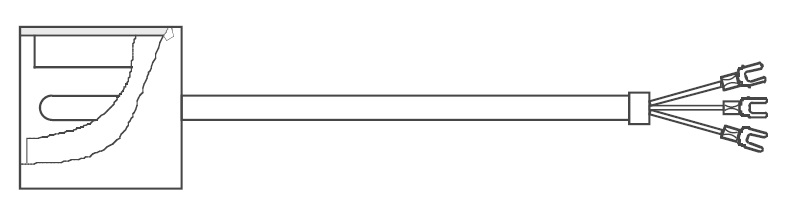

RPM is a resistance temperature detector that measures the temperature by fixing it to the
surface of the object with a strong magnet.
Since it can be easily attached and detached, it can be used widely for simple measurements and experiments.
Delivery: Inquiry
Features
A magnetic-type RTD suitable for simple/quick measurements.
Since it has a built-in magnet, attachment and removal are easy.
Download
Date Sheets
Specifications
| Element | Pt100Ω resistance element |
|---|---|
| Wiring | 3wire |
| Tolerance | Class B±(0.3 + 0.005 ¦ t ¦ ) |
| Measuring current | 1mA |
| Number of element | Single |
| Insulation resistance | 100MΩ or more with125V |
