RS2

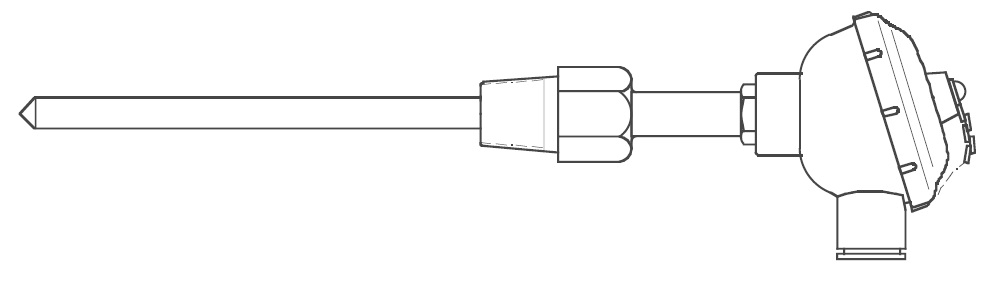

Sheath RTD (Resistance Temperature Detectors)With Terminal and Thread fitting
RS2 is a screw-in type sheath resistance thermometer, and can be used as a pipe insertion in
combination with a protective pipe as well as a duct, tank, etc.
Standard threads are pipe taper threads (R) and pipe parallel threads (G), but other types of threads can also be manufactured.
Delivery: Inquiry
Features
A screw-in type sheath resistance thermometer, and can be used as a pipe insertion in combination with a protective pipe as well as a duct, tank, etc.
Download
Date Sheets
Specifications
| Element | Pt100Ω Resistance element |
|---|---|
| Wiring | 3-wire |
| Tolerance | Class A±(0.15＋0.002｜t｜)℃ Class B±(0.3＋0.005｜t｜)℃ |
| Measuring Current | 1mA |
| Noumber of element | Single, Double |
| Insulation resistance | 100MΩ or more with 125V |
