RS7

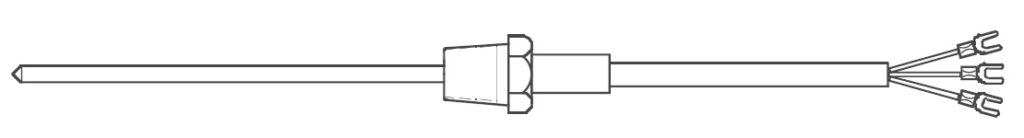

Sheath RTD with lead wire, screwintype
RS7 is a screw-in type sheath RTD that can be used for ducts, tanks,etc., as well as pipe insertion in combination with a protective tube.
The standard threads are tapered pipe threads (R) and parallel pipe threads (G), but other types of threads are also available.
Delivery: Inquiry
Features
In addition to ducts and tanks, it can also be used for pipe insertion when combined with a protective tube.
Download
Date Sheets
Specifications
| Element | Pt100Ω Resistance element |
|---|---|
| Wiring | 3-wire |
| Tolerance | Class A±(0.15＋0.002｜t｜)℃ Class B±(0.3＋0.005｜t｜)℃ |
| Measuring Current | 1mA |
| Noumber of element | Single, Double |
| Insulation resistance | 100MΩ or more with 125V |
