RSP

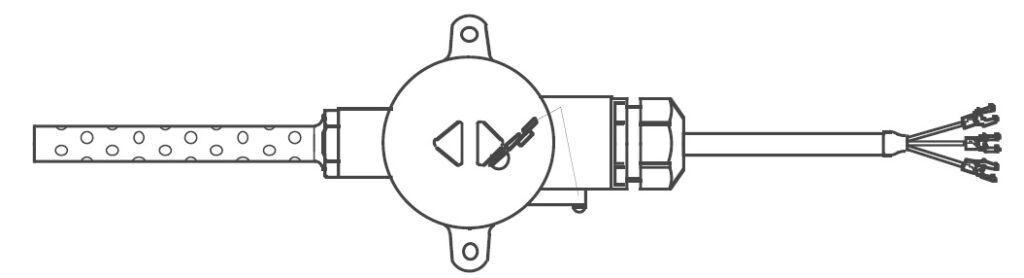

[Sheath RTD] Wall-mounted protector type
RSP is a sheath RTD that can be used in low temperature areas such as freezers.
The terminal box is filled with paraffin to prevent condensation.
Comes with a protector for safety and protection.
Delivery: Inquiry
Features
A sheath RTD that can be used in low temperature areas such as freezers.
The terminal box is filled with paraffin to prevent condensation.
Comes with a protector for safety and protection.
Download
Date Sheets
Specifications
| Element | Pt100Ω Resistance element |
|---|---|
| Wiring | 3-wire |
| Tolerance | Class A±(0.15＋0.002｜t｜)℃ |
| Measuring Current | 1mA |
| Noumber of element | Single, Double |
| Insulation resistance | 100MΩ or more with 125V |
