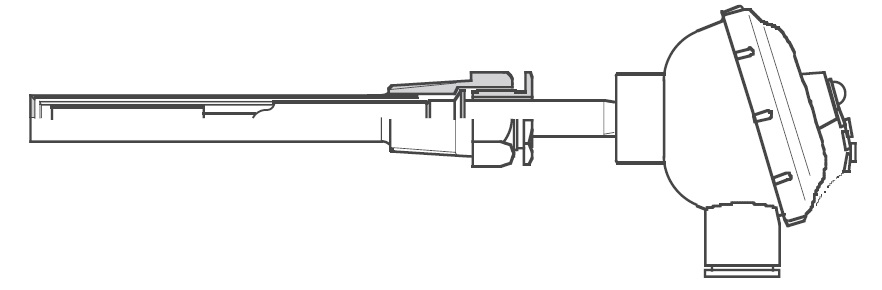

RTB
[RTD]Duct/piping insertion type with terminal box
RTB is a resistance thermometer that can be selected from a wide range of applications, such as double protection tube piping insertion type,duct type, dedicated replacement type for existing protection tube, etc.
In addition, Ni resistance temperature detectors can be selected as standard, making it ideal for maintenance of existing equipment.
Delivery: Inquiry
Features
Double protective tube, pipe insertion type, duct type, and dedicated type for existing protective tubes are available for selection.
The sensor can be replaced while leaving only the protective tube in place.
Download
Date Sheets
Specifications
| Element | Pt100Ω Resistance element |
|---|---|
| Wiring | 3-wire |
| Tolerance | Class A±(0.15＋0.002｜t｜)℃ |
| Measuring Current | 1mA |
| Noumber of element | Single, Double |
| Insulation resistance | 100MΩ or more with 125V |
