RWA
RTD (Resistance Temperature Detectors)For thermal storage tank measurement with wire anchor
RWA is fully waterproof type Resistance temperature detector,which can be used for temperature measurement by throw in to thermal storages or tanks.

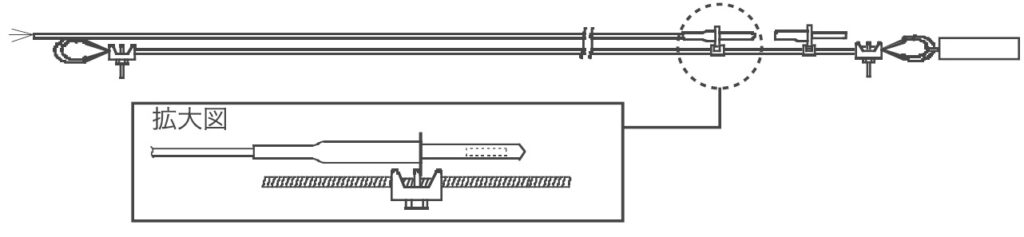

Attached anchor stabilize the measurement position in the flow.
Delivery: Inquiry
Features
With wire anchor to stabilize
Download
Date Sheets
Specifications
| Element | Pt100Ω resistance element |
|---|---|
| Wiring | 3-wire |
| Tolerance | Class A : ±(0.15 + 0.002 | t | ) |
| Measuring Current | 1mA |
| Number of element | Single |
| Insulation resistance | 100MΩ or more with 125V |
| Anchor weight | Approx. 3kg |
