RWC

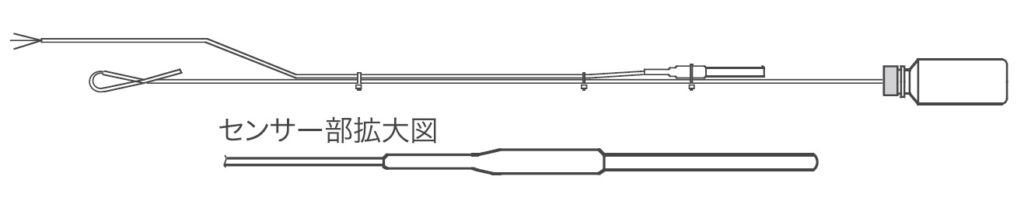

[RTD]Wire Anchor for hot liquid or fluid
RWC is a completely waterproof type resistance thermometer, and it uses titanium for the protection tube and non-metals for other parts, considering its resistance to corrosive components of hot springs.
The attached anchor (weight) stabilizes the measurement position even if there is some flow in the tank.
Delivery: Inquiry
Features
Fully waterproof type resistance temperature detector (RTD)
Titanium used for the protective tube, with other components made of non-metal materials
Wire anchor type to prevent vibrations caused by fluid behavior
Download
Date Sheets
Specifications
| Element | Pt100Ω Resistance element |
|---|---|
| Wiring | 3-wire |
| Tolerance | Class A±(0.15＋0.002｜t｜)℃ |
| Measuring Current | 1mA |
| Noumber of element | Single |
| Insulation resistance | 100MΩ or more with 125V |
| Anchor weight | Approx. 2.5kg |
