T01

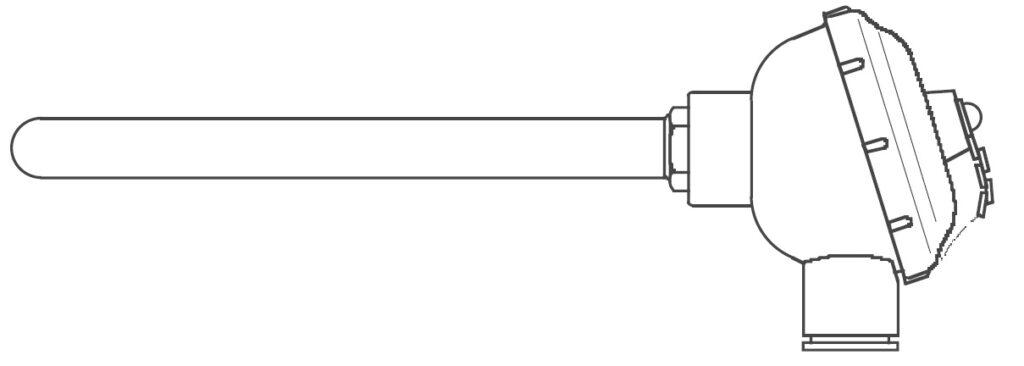

Straight Thermocouplewith Terminal
T01 is the simplest shape thermocouple with a terminal box.
By combining loose flanges (LFL) and compression fittings (CFG),it can be used for temperature measurement as an insert type that allows adjustment of the protection tube length.
Delivery: Inquiry
Features
With Connection head and terminal
Simple straight type
Download
Date Sheets
Specifications
| Thermocouple type | T,J,E,K |
|---|---|
| Tolerance | Class 1, Class 2 |
| Number of element | Single / Double |
| Measuring junction | Non-grounding (Standard) |
| Insulation resistance | 10MΩ or more with 500V |
