T02

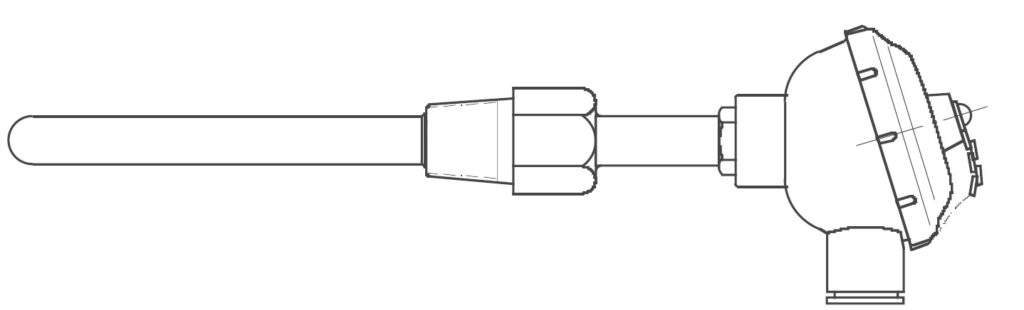

ThermocoupleWith terminal and Thread fitting
T02 is a screwin type thermocouple that can be used in various applications such as furnaces up to 1200 ° C and flue.
The standard screws are taper pipe threads (R) and parallel pipe threads(G), but other types of threads can be produced.
Delivery: Inquiry
Features
Capable of use in various applications, such as furnaces and flues, with a maximum temperature of up to 1200°C.
Download
Date Sheets
Specifications
| Element | T,J,E,K |
|---|---|
| Tolerance | Class1, Class2 |
| Nember of element | Single, Double |
| Measuring junction | Nongrounding(standard) |
| Insulation resistance | 10MΩ or more with 500V |
