TS1

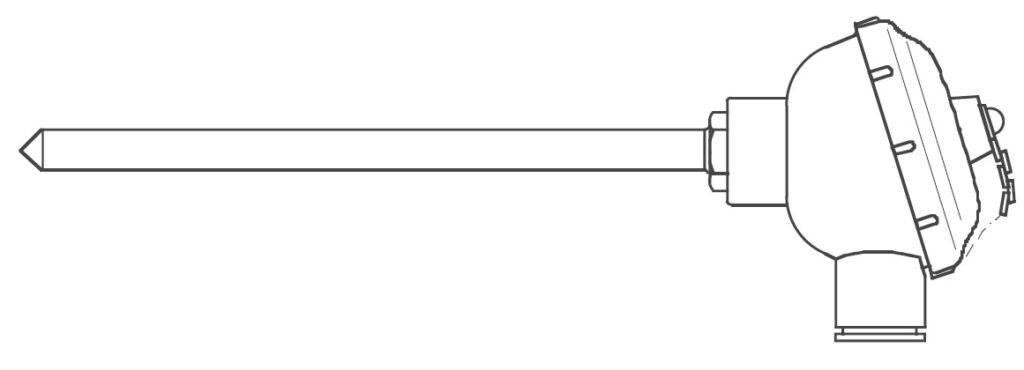

Sheath Thermocouple Straight Typewith Terminal
TS1 is the simplest shape Sheath thermocouple with a terminal box.
By combining loose flanges (LFL) and compression fittings (CFG),it can be used for temperature measurement as an insert type that allows adjustment of the protection tube length.
Delivery: Inquiry
Features
With Connection head and terminal
Simple straight type
Download
Date Sheets
Specifications
| Thermocouple type | T,J,E,K |
|---|---|
| Tolerance | Class 1, Class 2 |
| Number of element | Single / Double |
| Measuring junction | Non-grounding (Standard) |
| Insulation resistance | 20MΩ or more with 100V at φ2.0 or less 100MΩ or more with 500V at φ2.3 or less |
