TS2

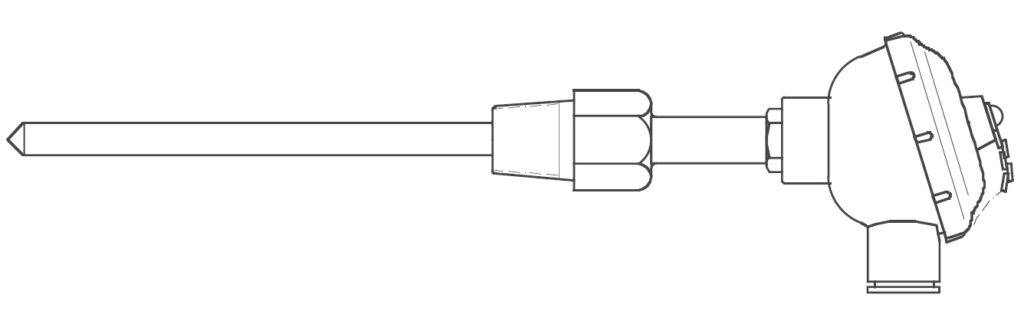

Sheath Thermocouple with terminal and Thread fitting
TS2 is a screw-in type sheathed thermocouple that can be used in various applications such as
furnaces and flues up to 1050 ° C.
Standard screws are taper pipe thread (R) and pipe parallel thread(G), but other types of screws are also available.
Delivery: Inquiry
Features
A screw-in type sheathed thermocouple that can be used in various applications such as
furnaces and flues up to 1050 ° C.
furnaces and flues up to 1050 ° C.
Download
Date Sheets
Specifications
| Element | T,J,E,K |
|---|---|
| Tolerance | Class1, Class2 |
| Nember of element | Single, Double |
| Measuring junction | Non-grounding(standard) |
| Insulation resistance | 20MΩ or more with 100V (φ2.0 or less） 100MΩ or more with 500V (φ2.3 or more） |
