TS3

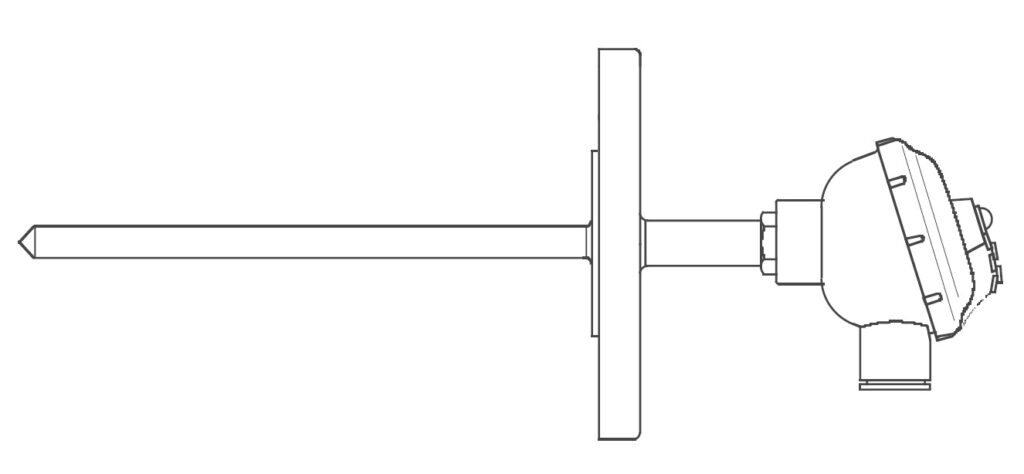

Flange type Sheath ThermocoupleWith terminal and Thread fitting
TS3 is a flange type thermocouple that can be used in various applications such as inside furnaces and flues up to 1050℃.
The standard flange is JIS standard, but we can also manufacture JPI and ANSI standard flanges.
Delivery: Inquiry
Features
A flange type thermocouple that can be used in various applications such as inside furnaces and flues up to 1050℃.
Download
Date Sheets
Specifications
| Element | T,J,E,K |
|---|---|
| Tolerance | Class1, Class2 |
| Nember of element | Single, Double |
| Measuring junction | Non-grounding(standard) |
| Insulation resistance | 20MΩ or more with 100V (φ2.0 or less） 100MΩ or more with 500V (φ2.3 or more） |
