TS4

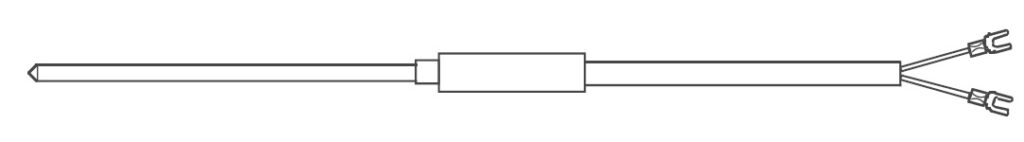

Sheath Thermocouple Straight Typewith Compensation wire
TS4 is a sheathed thermocouple with a compensating wire,which is a versatile product such as measurement of mold temperature and surface temperature.
Delivery: Inquiry
Features
Sheath thermocouple with Compensation wire
Straight type
Download
Date Sheets
Specifications
| Thermocouple type | T,J,E,K |
|---|---|
| Tolerance | Class 1, Class 2 |
| Number of element | Single / Double |
| Measuring junction | Non-grounding (Standard) |
| Insulation resistance | 20MΩ or more with 100V (φ2.0 or less) 100MΩ or more with 500V (φ2.3 or more) |
