WLD-PA□R

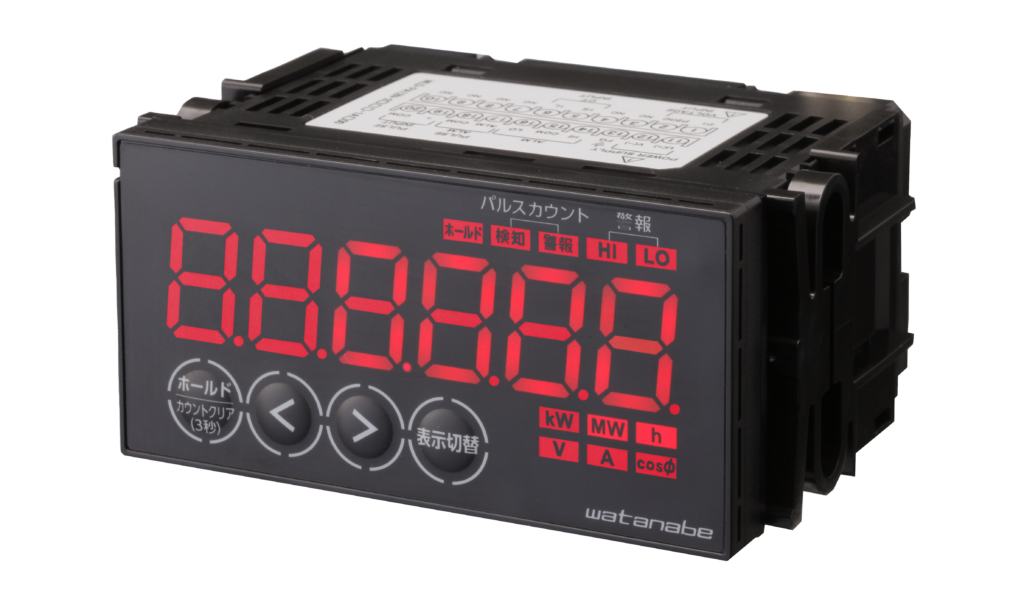

Digital panel meter for Power measurement
A power meter with a standard DIN size of 48mm × 96mm.
Delivery: Inquiry
Features
Achieves high precision with a power measurement accuracy of ±1.0% FS.
Measurement data can be transmitted via RS-485 (Modbus) communication.
Download
Date Sheets
Specifications
| Number of input | AC current : 1ch (Up to 2 special CT (CTL-10 / WCTF)) AC voltage : 1 system (2-wire or 3-wire) |
|---|---|
| Measurement circuit | Single-phase 2-wire/single-phase 3-wire/three-phase 3-wire |
| Input rating | Current : AC5A/50A/100A/200A/400A/600A (Input with special CT (CTL-10 / WCTF)) Voltage: AC220V (Single-phase 3-wire: 220V between 1-2, 110V between 1-N, 2-N) |
| Display | Red 7 segment LED (height 18mm) Alarm monitor : HI/LO/Pulse count/Pulse input Status monitor : Pulse detection/Pulse output (receiving power)/Pulse output(transmitting power) |
| Operating temperature & humidity range | ：－5～+55℃ 90%RH or less（Non-condensing） |
| Power supply | AC100～240V±10%（50/60Hz） |
| Dimensions | 48（H）×96（W）×85.9（D）mm |
| Weight | Approx. 250g |
